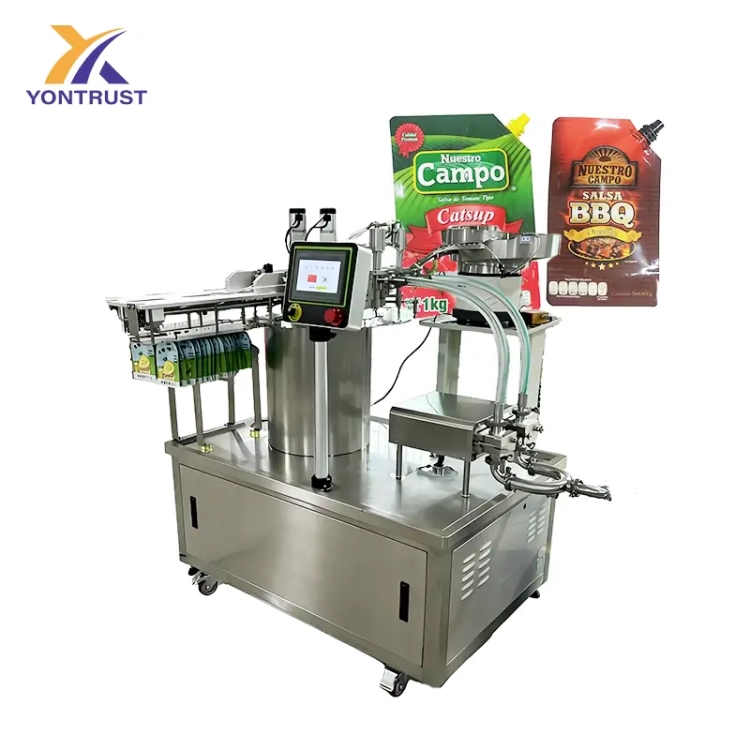

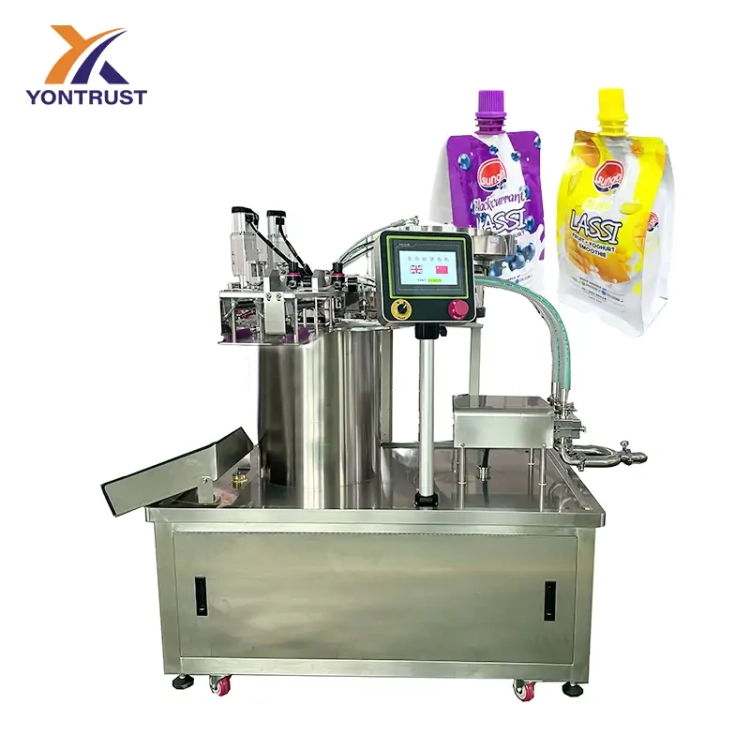

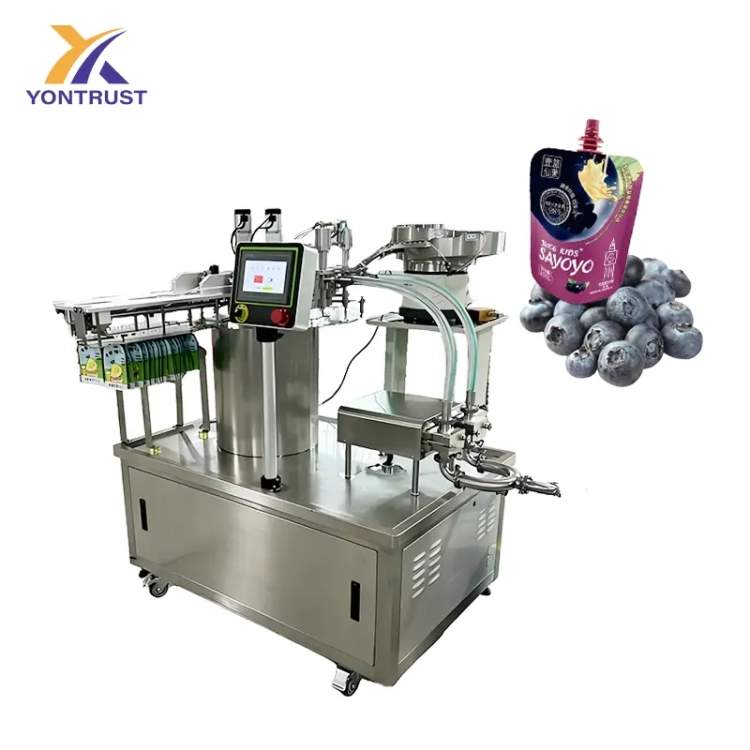

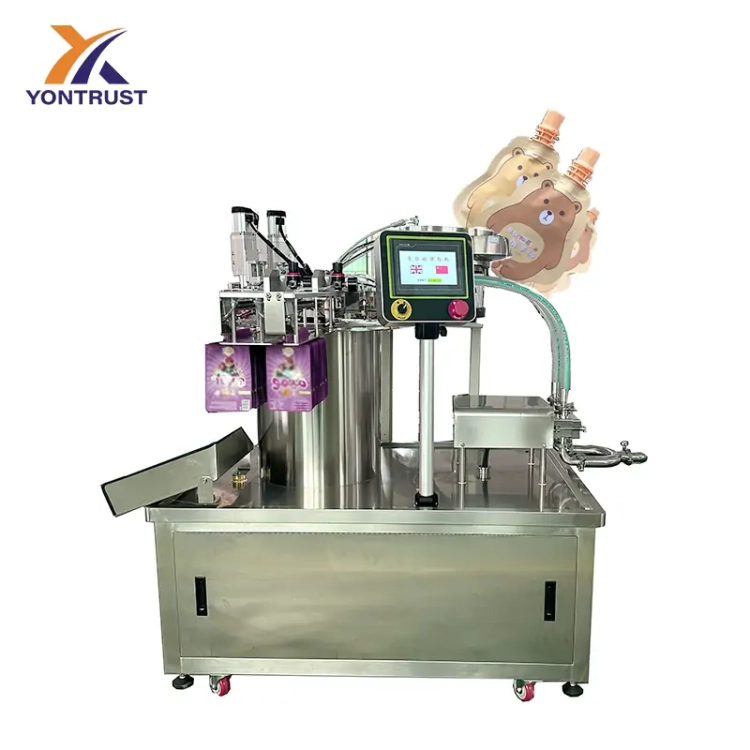

Equipment Parameters:
1.Dimensions of a Single Machine (Length × Width × Height): 1.2m × 1.2m × 1.5m; Weight: Approximately 268KG
2.Power Supply and Power: 220V/50HZ; 3.2KW
3.Compressed Air Pressure for Use: 0.5-0.8Mpa; Air Consumption: 1.5m³/min
4.Noise ≤ 85dB
Equipment Working Mode: One person hangs the bag - automatic filling - automatic cap feeding - automatic capping; (Operated by one person)
Applicable Capacity: 50～5000g
Equipment Speed: 10～70 bags/minute (Specifically subject to the filling volume and materials)
For example: Approximately 20-30 bags for 2000g, approximately 30-50 bags for 1000g, and approximately 40-65 bags for 450g.
Equipment Filling Accuracy: ±0.5%. For example, 100 ± 0.5
Instructions on Usage Function and Structure:
1. Bag Feeding Method: Manual bag hanging
2. Filling Method: Quantitative filling by servo magnetic gear pump, self-priming filling
3. Cap Feeding Method: Automatic cap hanging through the cap channel, and automatic cap arranging by the vibrating plate.
4. Capping Method: Servo claw-type capping, with precisely adjustable torque.
5. Bag Discharging Method: Automatic bag discharging by rotation, and the bags enter the frame through the chute.
Configuration of Spare Parts, Material and Heat Treatment:
Number | Name of Spare Part | Quantity | Configuration Brand/Model/Heat Treatment |
1 | PLC Programmable Controller
| 1set | Weisheng Industrial Control |
2 | Touch Screen | 1set | Kunlun |
3 | AC Contactor | 1set | Chint |
4 | Switch Electronic Components | Partially | Chint |
5 | Filling Servo Motor
| 1set | Dingshi |
6 | Main Machine Servo Motor 750W | 1set | Dingshi |
7 | Capping Servo Motor | 1set | Dingshi |
8 | High Precision Planetary Reducer | 1set | Zhuolan |
9 | Detection Switch | 2set | Hugong |
10 | Pneumatic Components | The whole machine | Jiede |
11 | DC24V Power Supply Box | 1set | Mean Well (Taiwan) |
12 | Bearings | 2set | Haerbing |
13 | Frame Made of 304 Sheet Metal | The whole machine | SUS304 |
14 | Aluminum Parts | The whole machine | National Standard 6061 + Sandblasting Anodizing Treatment |
15 | Plastic Parts | Partially | PE、POM、or Teflon |
16 | Some Transmission Parts and Guide Parts | The whole machine | 304# |
